The tank rafter calculation involves a comprehensive analysis of structural elements to ensure the stability and safety of the tank. To begin, determine the loads acting on the rafter, including dead loads, live loads, and environmental loads such as wind or seismic forces. The next step is calculating the bending moment and shear force distribution along the rafter’s length, considering the tank’s geometry and any applied loads.
Once these forces are established, compute the section modulus, a crucial parameter that reflects the section’s resistance to bending. The allowable bending stress is then compared with the induced stress to ensure the rafter remains within safety margins. This ratio serves as a key indicator of the rafter’s structural adequacy.
Additionally, factors like material properties, support conditions, and relevant design codes influence the entire process. May iterate through different designs to optimize the rafter’s dimensions while adhering to safety standards.
The tank rafter calculation is a meticulous procedure, balancing structural integrity, material efficiency, and adherence to regulatory guidelines to ensure the tank’s stability throughout its operational life.
As per above, there are many some parameters are missing in the rafter calculation appear to be considerably short, they only determine if the allowable bending stress is acceptable or not. Further detail/good calculation explained below.

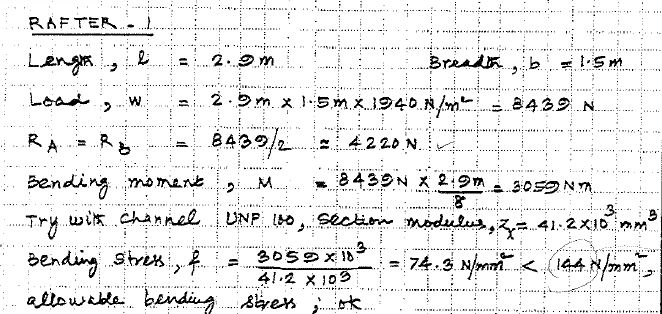

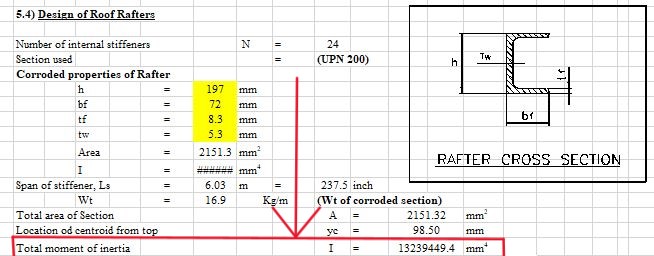

The rafter calculations begin with the initial determination of the total moment of inertia.
Subsequently, section modulus are computed.

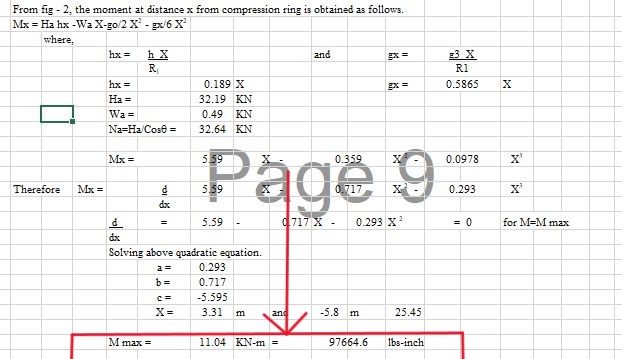

Following this calculations, determine the moment at a specified distance ‘X’ from the compression ring, resulting the determination of the maximum moment, denoted as Mmax.

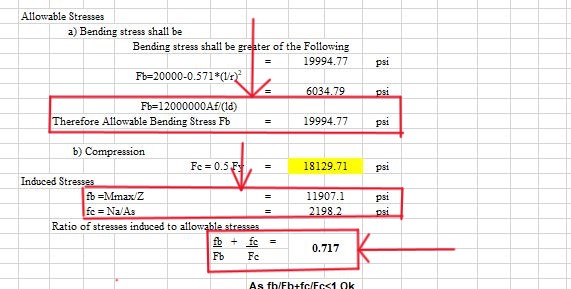

After calculating the allowable bending stress and induce stress, determine their ratio to assess whether the rafter is within acceptable limits or not.
