Mech1: 2.5 KL Vessel
AVAILABLE : Datasheet, Specification, GA Drawing, Fabrication Drawing, Mechanical Design Calculation, 3D Model (Native files)
Design as per ASME Sec. VIII Div 1 Ed 2019, Size 1350 ID X 1850 HT (mm), Design pressure 3.5 / FV (Kg/cm2), Design temperature 76 (deg oC), MOC: SA 240 GR 304L
Mech2: 300 KL Tank
AVAILABLE : GA Drawing, Fabrication Drawings (Native Files)
Design as per API 650 Ed 12, Cone Roof, Size 6800 ID X 9100 HT (mm), Design pressure ATM + Full liquid (mmWC), Design temperature 65 (deg oC), MOC: SA 240 GR 304

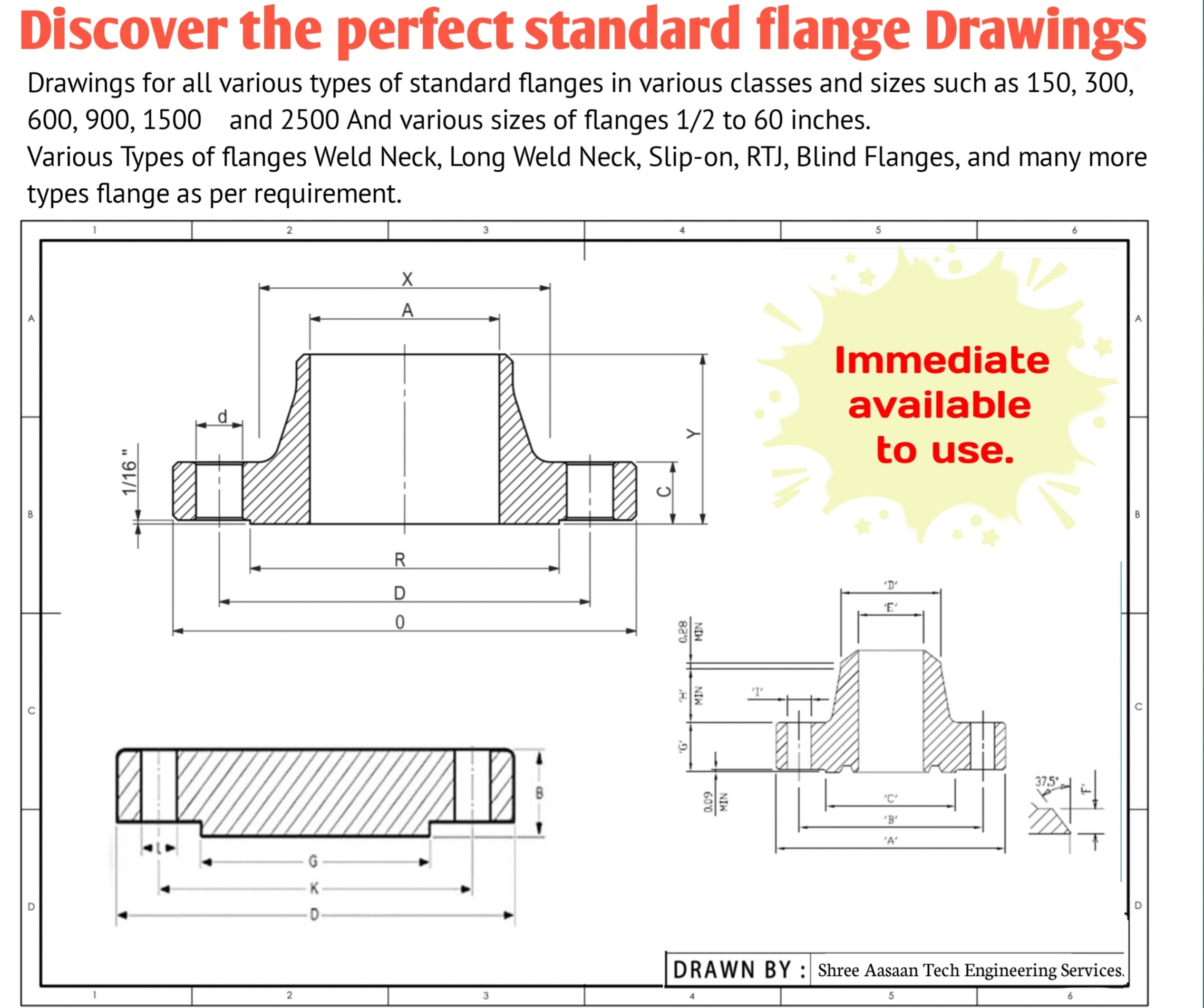

Discover the perfect standard flange drawing
AVAILABLE : Weld Neck, Long Weld Neck, Slip-on, RTJ, Blind Flanges, and many more types flanges drawing as per requirement.
Drawings for all various types of standard flanges in various classes and sizes such as 150, 300, 600, 900, 1500#, and 2500 And various sizes of flanges 1/2 to 60 inches. Various Types of flanges Weld Neck, Long Weld Neck, Slip-on, RTJ, Blind Flanges, and many more types flange as per requirement.

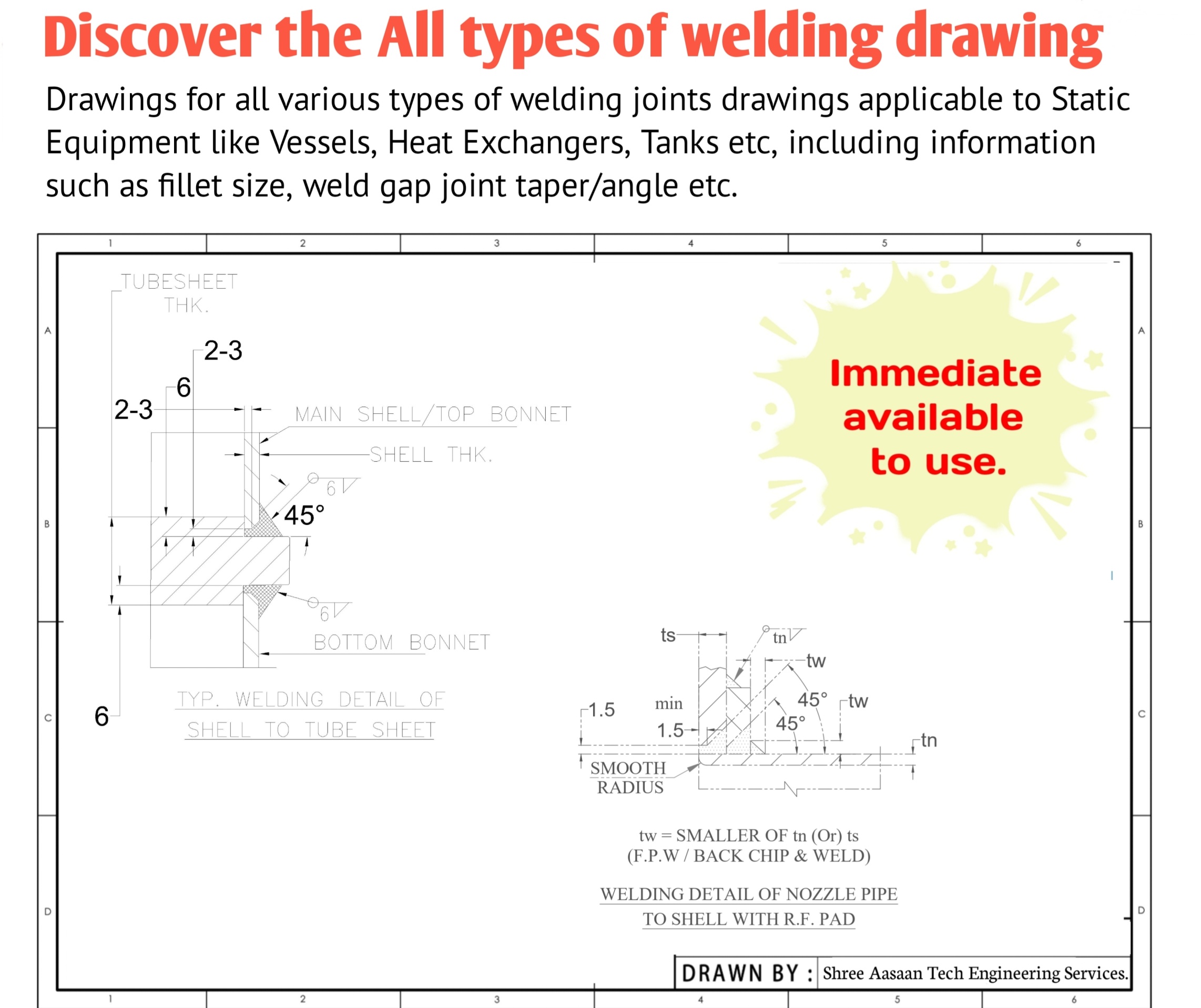

Discover the all types of welding drawing
AVAILABLE: Vessels, Heat Exchanger, Tank welding joint
Drawings for all various types of welding joints drawings applicable to Static Equipment like Vessels, Heat Exchangers, Tanks etc, including information such as fillet size, weld gap joint taper/angle etc.

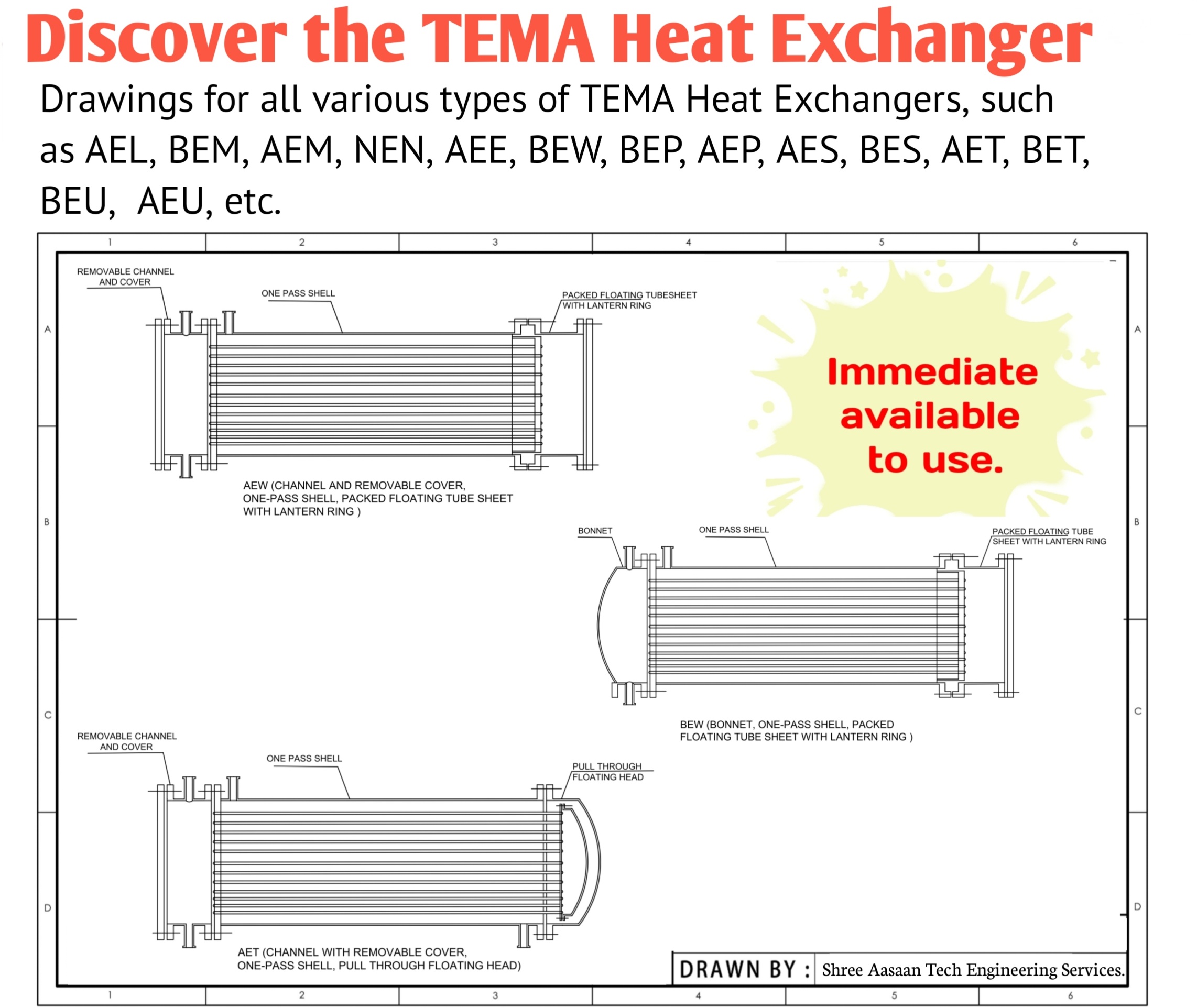

Discover the TEMA Heat Exchanger
AVAILABLE: AEL, BEM, AEM, NEN, AEE, BEW, BEP, AEP, AES, BES, AET, BET, BEU, and AEU types.
Drawings for all TEMA (Tubular Exchanger Manufacturers Association) types of heat exchangers, including AEL, BEM, AEM, NEN, AEE, BEW, BEP, AEP, AES, BES, AET, BET, BEU, and AEU.

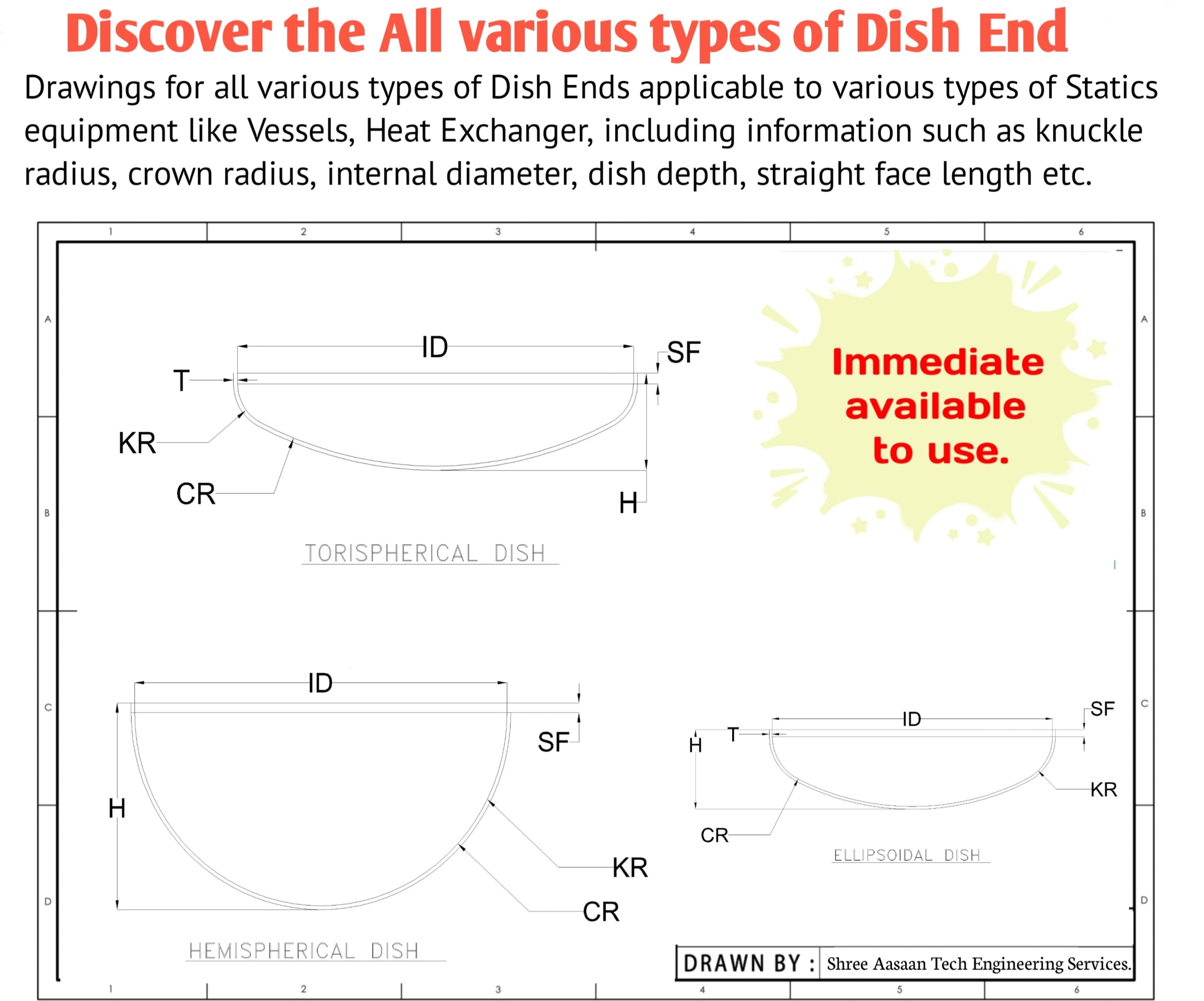

Discover the all various types of Dish End
AVAILABLE : Vessels, Heat Exchanger various types of dish end.
Drawings for all various types of Dish Ends applicable to various types of Statics equipment like Vessels, Heat Exchanger, including information such as knuckle radius, crown radius, internal diameter, dish depth, straight face length etc.

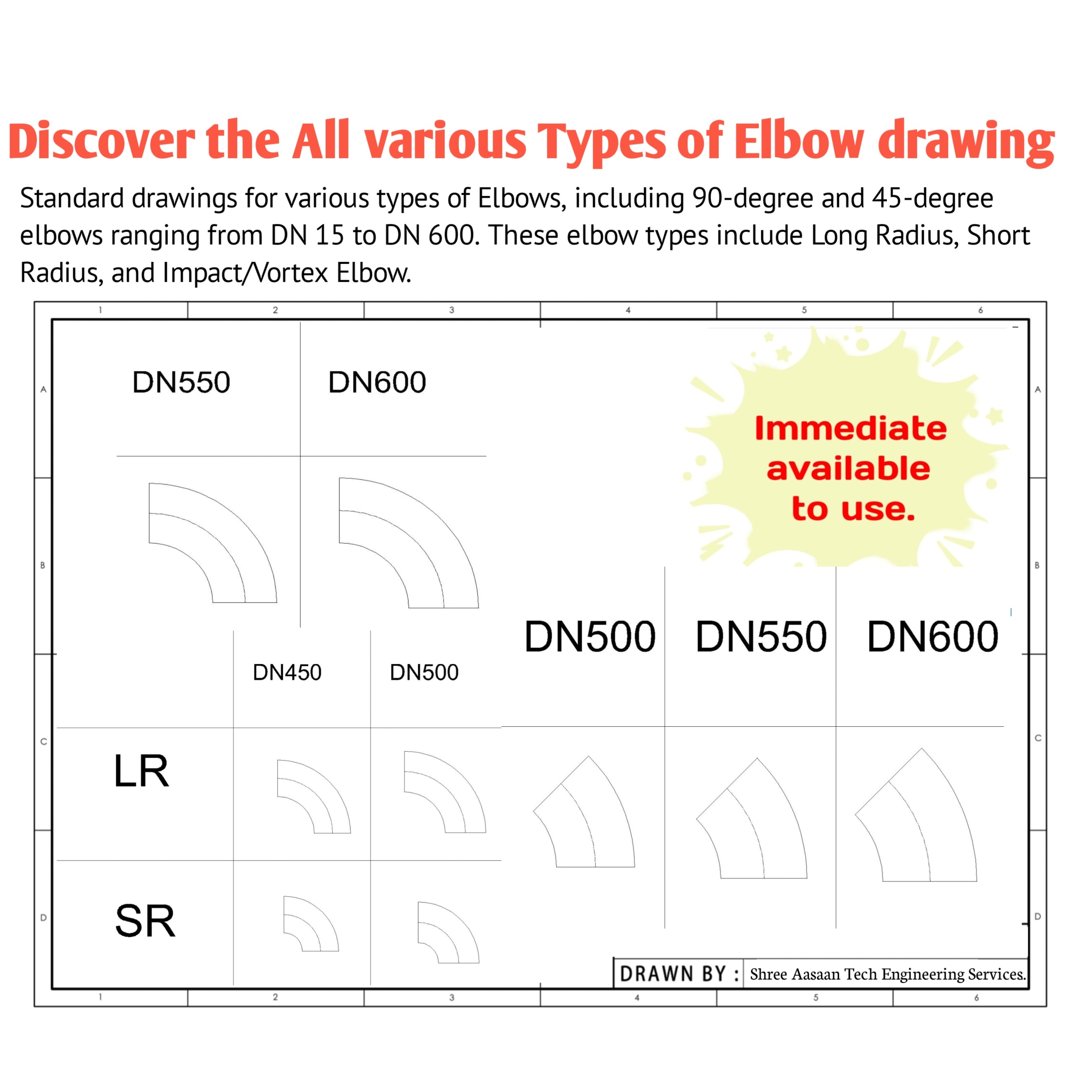

Discover the all various types of Elbow drawing.
AVAILABLE : Long Radius, Short Radius, Impact/Vortex Elbow etc.
Drawing for various types of Elbows, including 90-degree and 45-degree elbows ranging from DN 15 to DN 600. These elbow types include Long Radius, Short Radius, Impact/Vortex Elbows etc.
Discover the various size of Equal Tee drawing.
AVAILABLE : Size ranging from DN 15 to DN 300
Drawing for Equal Tee in various sizes, ranging from DN 15 to DN 300.
Discover the Davits for various weight for manhole lifting.
AVAILABLE : Various weight 500kg, 1000kg, 1500kg, 2000kg, 2500kg, and more.
Drawings for davit arrangement of various weights for manhole lifting such as 500kg, 1000kg, 1500kg, 2000kg, 2500kg, and more, according to specific requirements.
Discover calculations for lifting manhole/body flange cover on various types of Davit.
AVAILABLE : Davit calculations .
Calculations for various types of davit, such as type A (winch to load) & type B (ratchet hoist) to use manhole/body flange cover lifting, that includes radial load, axial load, bending moment etc.

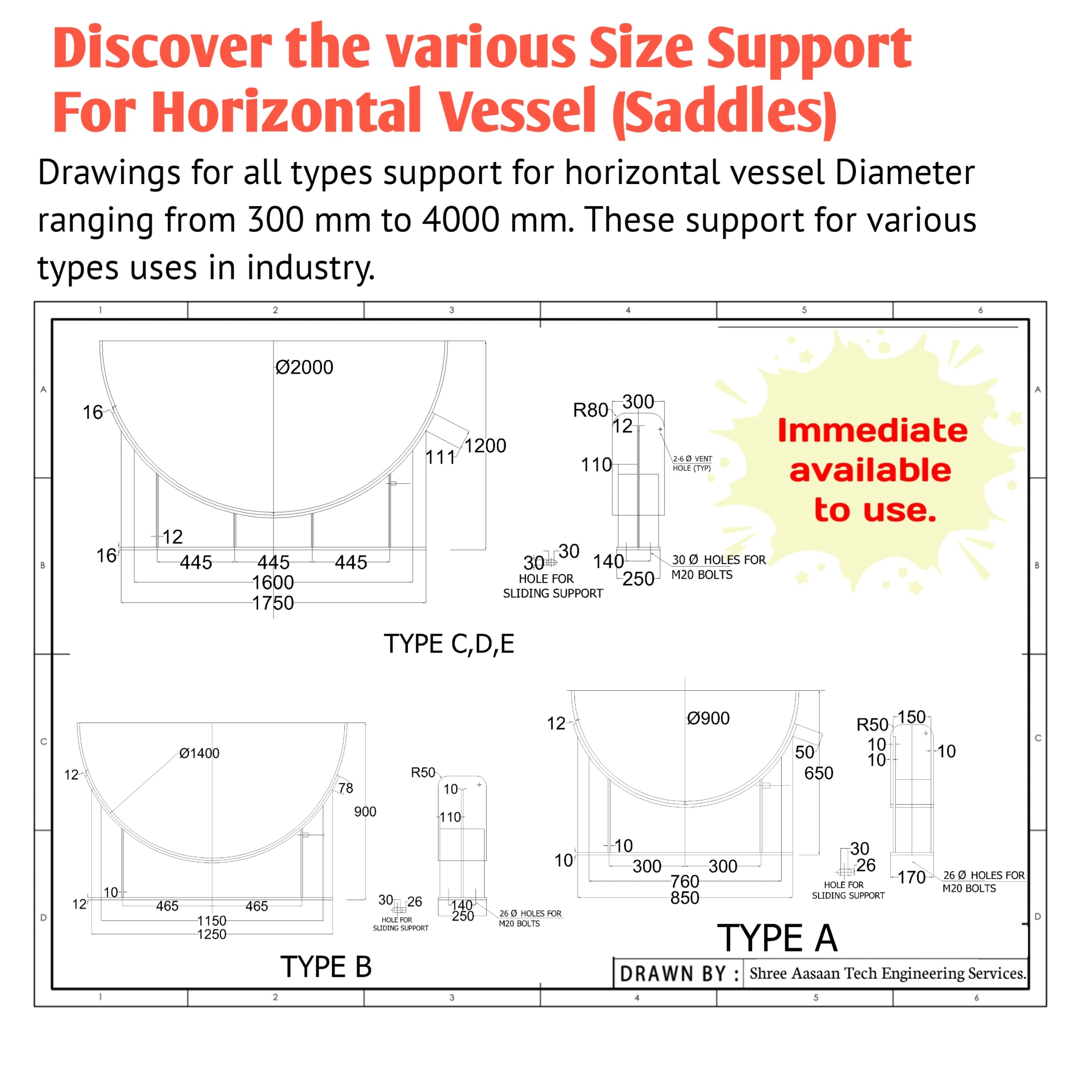

Discover the various size support for horizontal vessel (saddles)
AVAILABLE : Diameter ranging from 300 mm to 4000 mm.
Drawings for all types support for horizontal vessel diameter ranging from 300 mm to 4000 mm. These support for various types uses in industry.
Discover the various Anchor Chair sizes of Skirt Base
AVAILABLE : bolt diameter ranging from 24mm to 72mm.

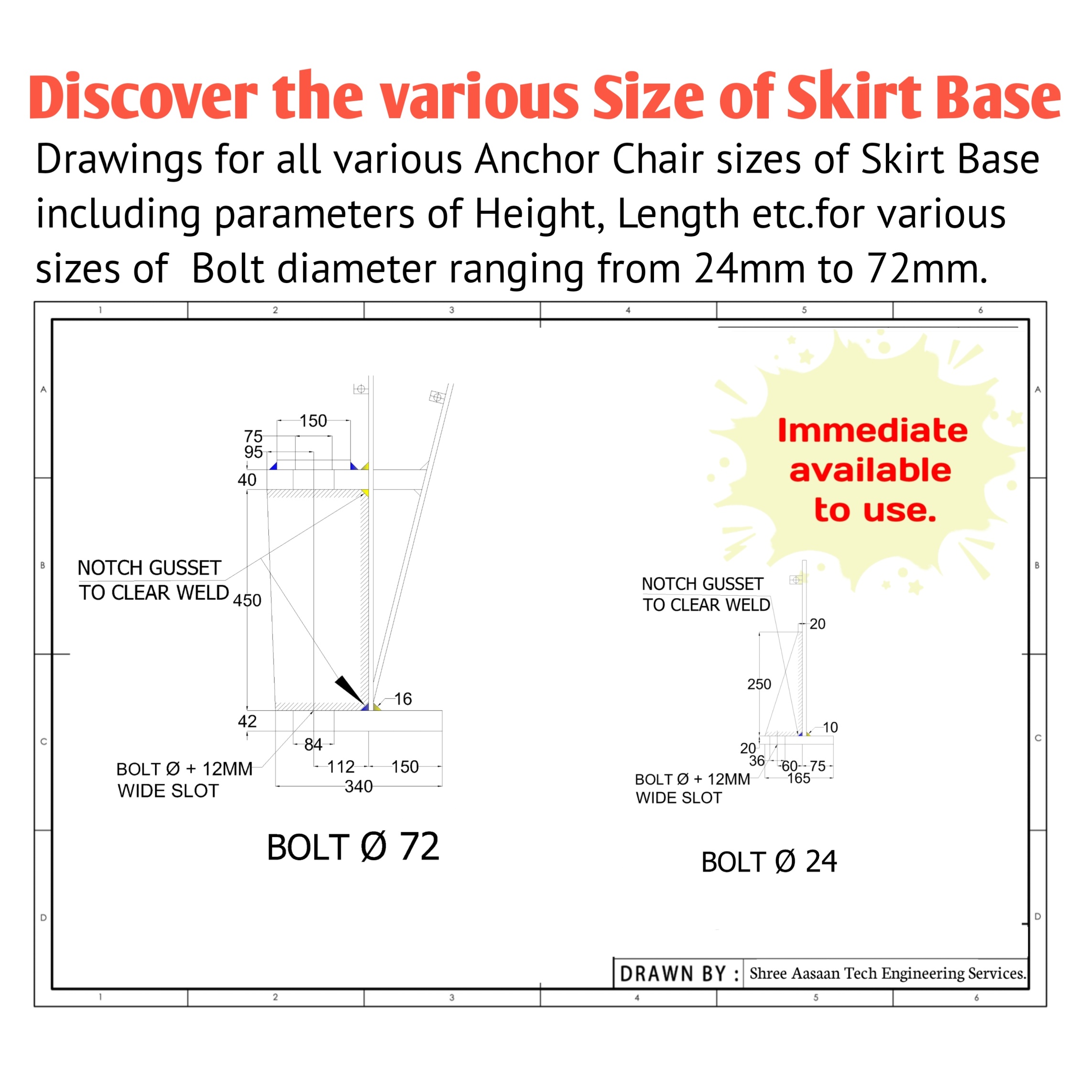

Drawings for all various Anchor Chair sizes of Skirt Base including parameters of height, length etc. for various sizes of bolt diameter ranging from 24mm to 72 mm.

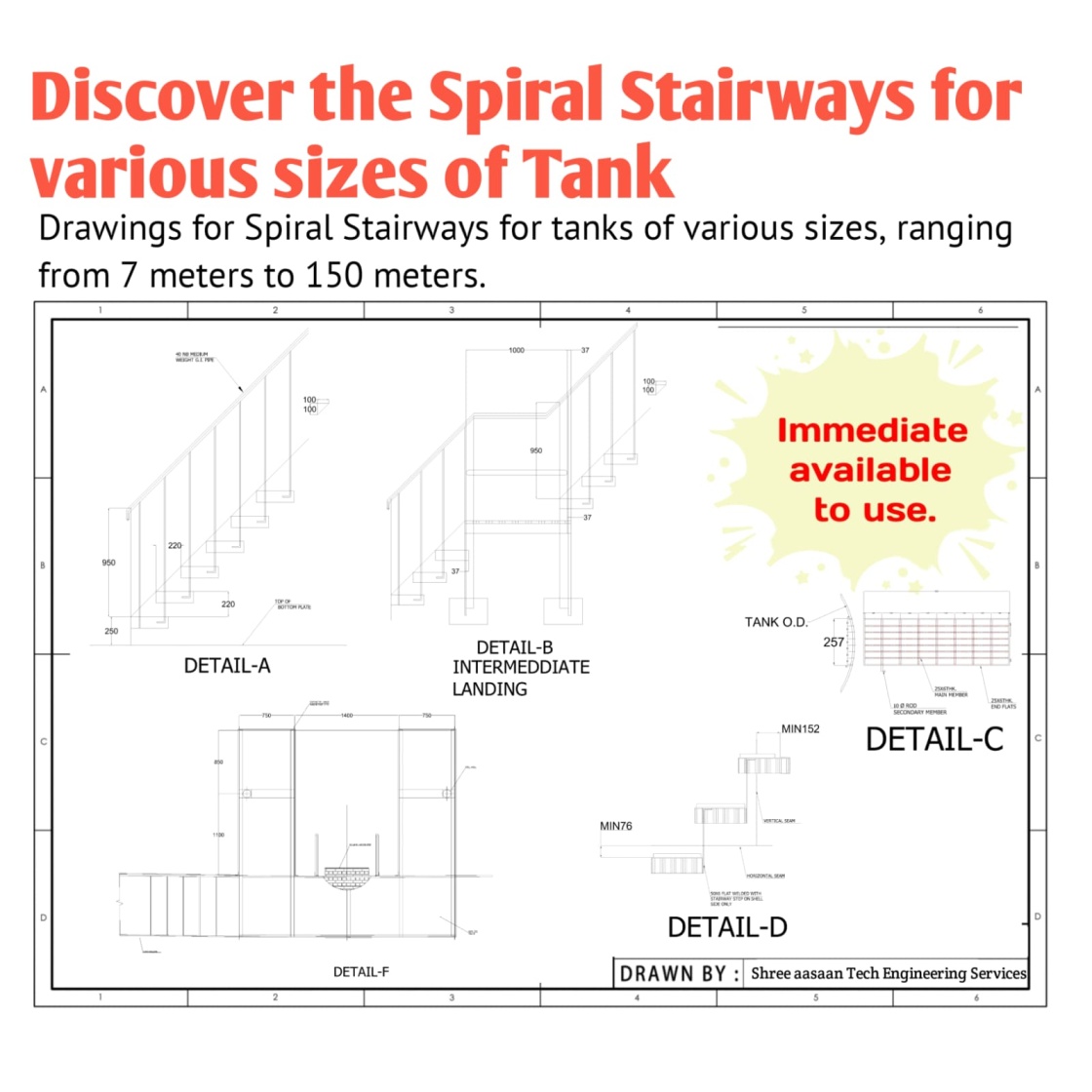

Discover the Spiral Stairways for various sizes of tank
AVAILABLE : Tank size ranging from 7 meters to 150 meters.
Drawings for Spiral Stairways for Tank of various sizes, ranging from 7 meters to 150 meters.
Discover The Rafter Calculation for Storage Tank.
AVAILABLE : Rafter Calculation for Storage Tank

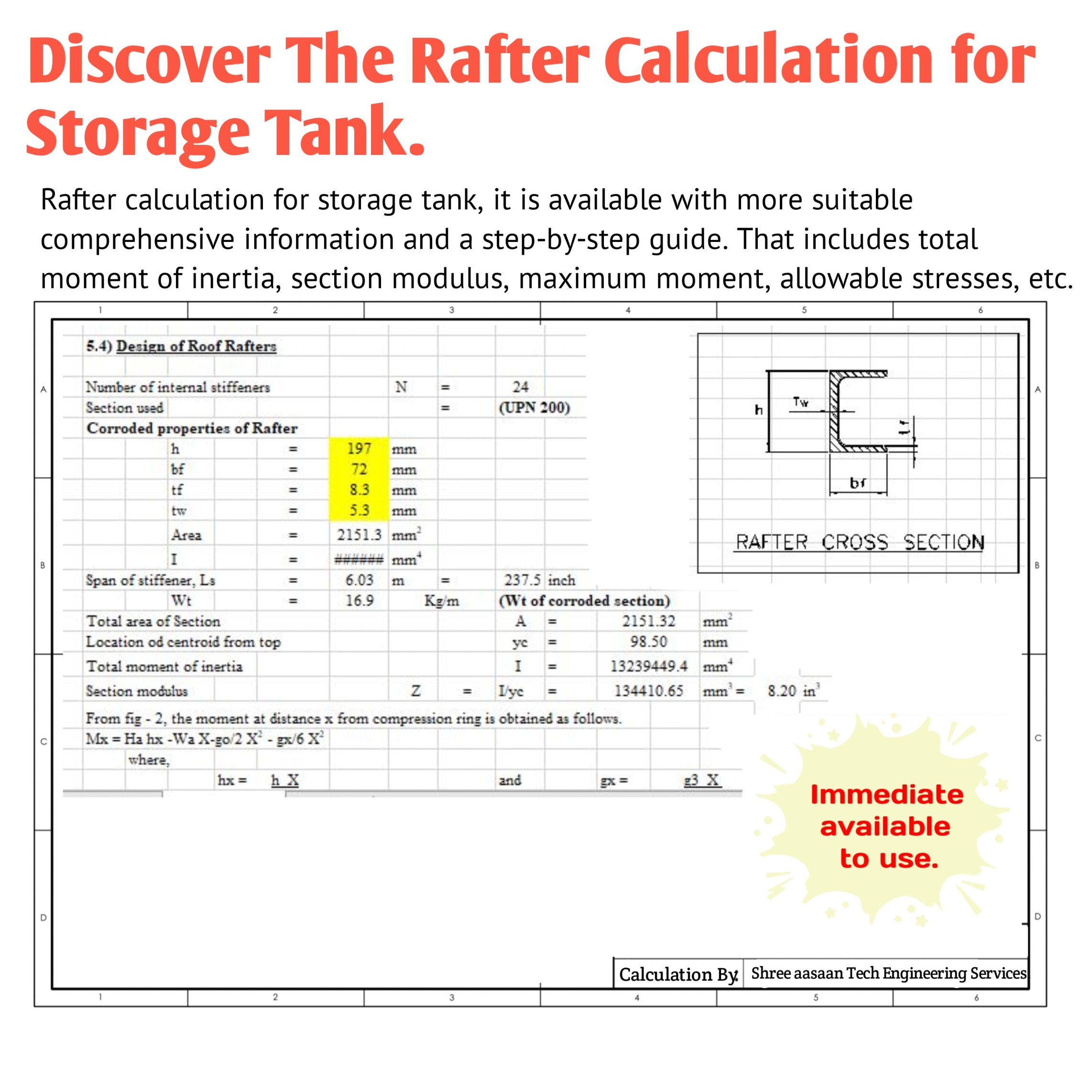

Rafter Calculation for storage tank, it is available with more suitable comprensive information and a step-by-step guide. That includes total moment of inertia, section modulus, maximum moment, allowable stresses, etc.

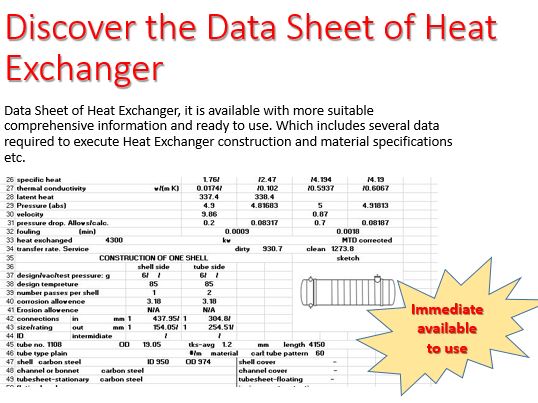

Discover The Data Sheet of Heat Exchanger.
AVAILABLE : Data Sheet of Heat Exchanger
Data Sheet of Heat Exchanger, it is available with more suitable comprehensive information and ready to use. Which includes several data required to execute Heat Exchanger construction and material specifications etc.
Discover The General Arrangement Drawing of Heat Exchanger.
AVAILABLE : General Arrangement Drawing of Heat Exchanger
General Arrangement Drawing of Heat Exchanger, it is available with more suitable comprehensive information and ready to use. Which includes several data required to execute Heat Exchanger construction and material specifications etc.
